Nuluhon Trusmadi & Sungai Kiluyu


Public Summary

Managing Forest Management Unit 10 (FMU10:Tambunan), (Nuluhon Trusmadi, Sungai Kiluyu & Nuluhon Trusmadi (Extension) Forest Reserves.

The Forest Management Unit 10 (FMU10: Tambunan) is managed by the Sabah Forestry Department (SFD) under the Sustainable Forest Management (SFM) concept focusing on conservation efforts which complies with the existing States and Federal Laws, Environmental policies, legislations and regulations as well as firm commitments to the FSC principles and criteria. The management jurisdictions cover three (3) forestry districts of Tambunan, Ranau and Keningau. Each of the areas is headed by the District Forest Officer (DFO).

Policy Statement

The Forest Management Unit 10 (FMU10: Tambunan) is firm commitments to FSC principles and criteria as follows:-

  • To manage the FMU in accordance with the principles of sustainable forest management as prescribed by international standard (i.e. FSC) and national standard (MTCC).
  • To respect all applicable laws in the country, including State Forest policies, environmental policies, legislations and regulations, and international treaties and agreements.
  • To protect FMU area from illegal harvesting, settlement and other unauthorised activities.
  • To provide employment and services contracts to local communities, wherever possible.
  • To identify and protect all sites with potential special cultural, ecological, economic or religious significance to local communities.

New policies statement for Corruption, Sexual Harassment and Gender Equality had been developed and approved by the Chief Conservator of Forests as follows:

The Sabah Forestry Department (SFD) is an organisation responsible for protecting and managing Sabah's forest resources practices Zero Tolerance against corruption or all forms of corruption and abuse of power. SFD is committed to:

  1. Establish a culture of integrity and transparency at the workplace as well as continuing integrity and anti-corruption programs;
  2. Ensure all SFD personnel, forest licensee holders, appointed agents, suppliers and stakeholders are responsible to comply with existing anti-corruption laws and regulations;
  3. Provide avenues and encourages reporting on corruption and abuse of power through Customer Complaints;
  4. Provide full cooperation to the Malaysian Anti-Corruption Commission (MACC) in curbing corruption in SFD, forestry licensee holders, appointed agents, suppliers and stakeholders dealing with SFD; and
  5. Take firm action against any party found to be in violation of the anti-corruption laws and not complying with this policy.

The Sabah Forestry Department (SFD) practices Zero Tolerance against sexual harassment and/or acts of sexual harassment.

SFD is committed to:

  1. Provide a work place that is safe, conducive and free of sexual harassment to all SFD personnel, client/customers and the public;
  2. Ensure all SFD personnel, customers and the public are accountable and comply to all existing sexual harassment laws and regulations:
  3. Provide avenues and encourage reporting of sexual harassment and/or acts of sexual harassment through Customer Complaints; and
  4. Take firm action against any person found to be committing sexual acts and/or acts of sexual harassment and not complying with this policy.

The Sabah Forestry Department (SFD) practices gender equality in the management and administration of its organisation. SFD is committed to:

  1. Ensure that there is no gender discrimination in employment and employment opportunities, training and contracting;
  2. Ensure women are empowered in decision and policy-making; and
  3. Ensure equality for women in all aspects of management.

The Area

The FMU 10 was designated as a Conservation Area by the Sabah State Government as early as 2004. The whole of the FMU 10 is located in central Sabah, between longitude E 116o 21’ 13. 8” and E 117o 01’ and latitude N 5o 27’N and 5o 52’N (Figure 1). For management and identification purposes the site’s name is known as the Forest Management Unit Number 10 or FMU10 (Tambunan).

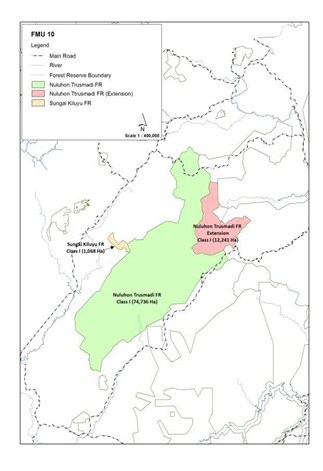

Figure 1 : The location of FMU10 (Tambunan)

As of December 2013, the FMU10 with a total size of 75, 804 hectare (ha), consisted of the Nuluhon Trusmadi Forest Reserve and the Sg. Kiluyu Forest Reserve. Both are under Class 1 (Protection) Forest Reserve. In late 2016, an area totaling 12,241 ha was excised out from the neighbouring Trusmadi Forest Reserve (FMU 5 (Ranau): Class II Forest Reserve). The whole area was gazetted as a Class I Forest Reserve and is known as the Nuluhon Trusmadi (Extension) Forest Reserve. As of January 2017, the total area for FMU 10 (Tambunan) is 88,045 ha (Table 1).

Table 1: The Forest Reserve in FMU10
ItemForest ReserveForest Reserve ClassHectare Ha)
1Nuluhon Trusmadi
I74, 736
2Sungai Kiluyu
I1, 068
3Nuluhon Trusmadi (Extension)


The Conservation Area Management Plan (CAMP) A Conservation Area Management Plan (CAMP), using the 5 S Planning approach of the TNC, had been developed by the Management Planning Core Team (MPCT). The MPCT led by Deputy Conservator of Forests (Management), Rahim Sulaiman, formulated the CAMP through a consultative and interactive planning process, involving a number of expertise and resource persons from within the SFD and also other relevant government agencies. (Table 1).

It was initially approved for implementations by the Chief Conservator of Forests Sabah (formerly known as the Director of Forestry Sabah) over a ten (10) year period in 2009. The validity of the plan was from 1.1.2009 until 31.12.2018. A review of the CAMP FMU10 was done by the MPCT in the middle of 2012 to include the necessary changes in the conservation targets, strategies and monitoring plan and other agenda such as Forest Certification. The Revised CAMP for FMU10 that was approved by the Chief Conservator of Forests was valid for another ten (10) year period from 1.1.2013 until 31.12.2022. A mid - term review was again done in late 2016 and early 2017 by the MPCT and it concluded with the latest document known as FMU10: CAMP Version.2 (FMU10: CAMP Ver.2). The document is currently under the process of peer review. Commitment to the FSC Principles and Criteria is firmly stated in the FMU10: CAMP Ver 2. Whenever, the FME uses contractors for any related works under the FMU10, it shall requires all of those contractors to comply with the FSC P&C too.

The draft of the FMU10: CAMP Ver.2 describes and summarizes the revised conservation targets, strategies, and the monitoring plans, including the estimated budgets for FMU 10 for the period from the year 2017 to 2026. This document also describes the size and location of the FMU 10, including the area’s characteristics, namely, its vegetation habitats, topography, soils associations, rainfall distributions, general flora and fauna populations and the extent of the burnt and encroached areas. Assessments of the field conservation capacity, the revised Conservation Targets including the Threats affecting the viabilities of the conservations targets, the relevant Conservation Strategies and the respective annual actions and monitoring plans are also deliberated.C P&C too.

Mid – Term Review Of The CAMP

Similarly to the earlier documents, a review of this FMU10: CAMP Ver. 2 will be done by the MPCT for FMU10 towards the end of the fourth (4) year of implementation, namely in 2020. This revision is known as the mid -term Review. A Third Revised CAMP for FMU10, to be referred to as FMU10: CAMP Ver. 3 will be produced by the MPCT for FMU10 before January 2021. The FMU10: CAMP Ver. 3 to be approved by the Chief Conservator of Forest Sabah will be valid for a period of ten (10) years. The mid - term review will bring on board all the necessary changes for the conservation targets, threats, all relevant changes in the operating environments of FMU10, physically or financially or socially, all relevant new things, technologies, information and the new strategies or even man power and other related planning capacities and capabilities.e respective annual actions and monitoring plans are also deliberated.C P&C too.

Management Prescriptions In the draft FMU10: CAMP Ver. 2 as stated in the initial CAMP, limited non - conservation usage namely, ecotourism and control hunting as well as a community woodlots usage are allowed in the designated areas. No commercial tree harvesting is allowed. The major bulk of the conservation activities in FMU10 are to counteract the major threats of Fire, Timber extractions, Poaching and forest area encroachments through forest restorations, forest awareness/ nature educations programme as well as total protection of the area from any illegal activities such as poaching of fauna and flora, illegal cutting of trees and encroachments.

The Revised Conservation Targets And Threats Using the 5 – S planning approaches, a total of eight (8) targets were identified as the main subjects for conservation in the initial CAMP for FMU10 (Rahim, 2009). These Targets were further classified into three (3) habitats and five (5) species group. The Conservation Targets included under the habitat group were the Upland Mixed Dipterocarp Forest (UMDF), the Lower Montane Forest (LMF), and the Summit Scrub (SS). The species group conservation targets comprised of Nepenthes X trusmadiensis, Rafflesia keithii, Rajah Brooke’s Birdwing butterfly, the hornbills and Serawi fish. Poaching of large and small fauna and flora, fire, littering along the summit’s trail, encroachment and small scale illegal timber extractions were identified earlier as the five (5) main threats to the viability of conserving the identified eight (8) targets accordingly (Rahim, 2009)

Under the mid-term review in 2013, both of the Conservation Targets and the Threats were reduced to only four (4) Targets and four (4) Threats respectively (Rahim, 2013). One of the previous target that is the Nepenthes x trusmadiensis was chosen as a High Conservation Value Forests (HCVF) since 2015 The revision done under the FMU10: CAMP Ver. 2 further reduced the Conservation targets into just three (3), namely, the Upland Mixed Dipterocarp Forest (UMDF), the Summit Scrub (SS) and the hornbills (Table 2).

Table 2: Revised Conservation Targets under FMU10: CAMP ver. 2
No.Conservation TargetsDescription of Target & Rationales For it Selection
1Upland Mixed Dipterocarp Forest (UMDF)This habitat covers about 46 % of the FMU 10. An important habitat that supports about 80% of the flora and 70 % of fauna surveyed in the area. This habitat is the main site for forest restorations, controlled hunting and gateway for ecotourism and mountain climbing activities. It is still susceptible to encroachment, forest fire and illegal poaching for flora and fauna as well as small scale timber extractions if not checked. This Target therefore still need to be maintained and monitored from the revised threats of Fire, illegal poaching and encroachment. A water intake source was also chosen as an HCV 5 area at the Sg Kaintano near the Wokok Sinua. Monitoring of the site will continue and an agenda for discussion in all Forest Communities meetings in Sinua.09)
2Summit Scrub (SS) Forms the peak habitat at Gunung Trus Madi. Contains unique montane flora and fauna, namely Nepenthes x trusmadiensis. The area covers approximately the size of two (2) football pitch. Due to its fragile habitats, target needs to be managed by restricting the trampling of the habitats by visitors. Impact of frequent visitations to the area could be minimised by providing for a certain path to be used by the visitors. Opening up of new walk paths in the summit will not be allowed. Poaching of Nepenthes x trusmadiensis did not occur at all since the CAMP was fully implemented in 2009 as visitors were prohibited to pick any neither flora nor fauna during their visitations to the peak or all along the three (3) Wayaans. These restrictions will continue to be practiced. This area was also chosen as a site for the HCV 1.3, due to the endemism of the N. x trusmadiensis. Two plots had been established under the HCV 1.3 category in 2014. Monitoring will continue.
3HornbillsThe FMU 10 may support up to seven (7) species of this particular bird. The hornbills group is listed as protected fauna in the Wildlife Conservation Enactment 1997, although it’s hunting through valid licences are allowed by the Sabah Wildlife Department. Surveys since 2011 indicated the presence of six (6) species in FMU10. Continuation of surveys is necessary. This activity will be led by Mr. Alim Biun of Sabah Parks.

Table 3: Descriptions of the Revised Threats in FMU 10 for 2017 until 2026
No.Threats To The Conservation TargetDescription of Target & Rationales For it Selection
1FireSince 2009 up to 2015, only one (1) incidence of fire was encountered in the Nuluhon Trusmadi FR. The damage was estimated to cover some 20 ha of secondary vegetation. Awareness campaign done so far has proven to be effective to control this threat. Unfortunately during the dry period from January to June 2016, SFD had to put up a big effort in fire fighting near the Sungai Atug area, in the southern part of Nuluhon Trusmadi FR. Some 1,200 ha were estimated to be burnt and SFD suspected that these fires were initiated from the open burning activities. Ground and aerial surveillances as well as awareness programs will be continued. The Sg Kiluyu FR remained unaffected by fire since 2009. Field staff remained vigilant and alert all the time for this threat.
2EncroachmentIn the Social Baseline Surveys (SBS) done in 2012 a total of 23 kampungs outside the Nuluhon Trusmadi FR were enumerated. The final tally was reduced to only 18 kampungs after a special SBS done in 2013. An area totaling 2,977.62 ha were encroached by some 519 individuals from the 18 kampungs. Activities had been put on checked through continuous monitoring of these areas through ground and aerial surveillances as well as Forest Communities meetings. Sg Kiluyu FR is free from any encroachment activities. Final recommendation on these encroachments would be put up by the MPCT before the end of 2017 for approval by the Chief Conservator of Forests.
3Illegal poaching of Flora & FaunaSince 2009, only one (1) incidence of illegal poaching of fauna that has been apprehended at Apin-Apin, Keningau. The culprit was subsequently convicted in court. Surveillance and awareness campaign need to be continued to check on this threat. Records of animals frequenting the area have been done through the night spotting and camera trap methodologies under the supervision of a trained SFD staff. This activity would be continued. Animal surveys together with the Sabah Wildlife Department would be done if the particular Department could spare free time to do this.

The Revised Strategies

The ultimate objective of the conservation strategies developed under this FMU10: CAMP Ver. 2 is to reduce the stresses and threats that are not only degrading but also lowering the viability of the three (3) selected Conservation Targets. In the original approved CAMP in 2009, a total of eighteen (18) Strategies were selected. These strategies were subsequently reduced to twelve (12) under the approved Revised CAMP in 2013. By focusing on the conservation targets and their sources of threats, the previous twelve (12) strategies were further reduced to ten (10) strategies under this FMU10: Ver. 2 (Table 4).

Table 4: Responsibilities in Implementing the Strategies under FMU10: CAMP Ver. 2
NoConservation StrategiesImplementers
1Boundaries Demarcation And Maintenance
K(FRM) Assisted By DFO Keningau, Tambunan and Ranau and all field staff
2Surveillance And Monitoring Activities
DFO Keningau, Tambunan and Ranau assisted by Bonaventure Yampai, Elrimeo Emin, Jafin Abu Bakar, Ricky Yolok and Haji Afifuddin Jadin
3Forest Restoration
DFO Keningau assisted By Jafin Abu Bakar and Anuar Mohammad
4Management Of Eco Tourism Activities
DFO Keningau and Tambunan assisted by Haji Afifuddin Jadin and Marjjah Othman
5Upgrading And Maintenance Of Relevant Infrastructures And Website
DFO Keningau assisted by Sabah Wildlife Department (Keningau) and Jafin A Bakar
6Communities Engagement
DFO Keningau and Tambunan assisted By Awangku Effendy, Jafin Abu Bakar, Marjjah Othman, Clarice Alliun, Ricky Yolok and Haji Afifuddin Jadin
7Wildlifes Surveys In Ulu Rompon And Ulu Pangas
DFO Keningau assisted by Sabah Wildlife Department (Keningau) and Jafin A Bakar
8Survey Of Hornbills
Alim Biun Of Sabah Parks
9Conservation Awareness Programmes
DFO Keningau and Tambunan assisted by Marjjah Othman (Tambunan) and Clarice Alliun (Keningau and Elrimeo Emin (Ranau)
10Managing Scientific Study
DFO Tambunan/Keningau/Ranau assisted by Elrimeo Emin , Marjjah Othman and Clarice Alliun and Forest Research Centre

High Conservation Value Forest (HCVF)

Based on the recommendation of an Ad Hoc Team headed by Haji Mohd Nooh Jiran, the MPCT had agreed on the establishment of two (2) categories of the HCV (High Conservation Value) areas in FMU 10. The HCV areas were the HCV 1.3: Endemism of the Nepenthes x trusmadiensis and the HCV 5: Basic Needs of Local Communities for water source (Mohd Nooh, 2015). Table 5 describes the two (2) categories and the location of its establishments in FMU10 respectively.

Table 5: The HCV Areas Established in FMU10
CategoriesDefinition under the HCVF ToolkitArea Established in FMU10
“Any forest containing endemic species as identified by FRIM, MNS, SFC, Forestry Departments and published literature, particularly in high concentrations or highly restricted distribution, can be considered HCV 1.3”.
The Summit scrub, which is also a Conservation Target under the Revised CAMP for FMU10 was chosen by as the habitat that supports the endemic Nepenthes x trusmadiensis, ahybridspecies between N. lowiiand N. macrophylla. Two Temporary Plots were established for the species at the summit scrub (Mohd Nooh, 2015).
“Forest area is fundamental to meeting basic needs of local communities”.
A water Intake source for the gravity water system at Sungai Kaintano for the villagers of Kg Sinua was established (Mohd Nooh, 2015)

Forest Certification Annual Surveillance

The FMU10, one of the areas that are managed wholly by SFD was selected for certification in 2014 under the Forest Stewardship Council’s (FSC) Principle of Forest Certification. The relevant documents and guidelines for the Forest Certification were distributed and appended for further references to all field staff and implementers of the CAMP for FMU10. Another important document that details the gaps to be acted upon, resulting from an earlier Baseline Assessment done in June 2014 by a third party Assessor from the Global Forest and Trade Network (GFTN) was also distributed and appended to all staff and implementers of CAMP for FMU10. All implementers for the Revised CAMP FMU10 were made aware of their respective roles and responsibilities in acting upon the relevant gaps.

The FMU10 was subjected to rigorous auditing for Forest Certification by the Scientific Certification System (SCS) Global Services in 2015 under the Principles and Criteria of the Forest Stewardship Council (FSC), which were fully subscribed by the MPCT for FMU10 and the Sabah Forestry Department (SFD). A Forest Certification (SCS-FM/COC-005062; FSC-C122511: SCS-FCP Interim Standard for Forest Management Certification in Malaysia Version 6.1) was subsequently awarded to FMU10. This Forest Certificate is valid from 11.5.2015 until 10.5.2020. Surveillance auditing by SCS Global Services to assess the compliance of the FMU10’s activities to the FSC Certification’s requirements will be done annually. Opening and closing meetings with the MPCT and other implementers will be done accordingly. Audit Findings will need to be taken action by the MPCT as to the requirements of FSC Forest Certification’s procedures.

Monitoring Programmes

To ensure the success of the ten (10) strategies for the FMIU10:CAMP Ver.2, a number of measurements and monitoring of the conservation targets and the HCVF will need to be done. The summary of the monitoring programmes listed in Table 6, describes briefly the seven (7) monitoring activities to be done in measuring the conservation success of the three (3) targets for the next Ten (10) years. All Implementers are responsible to carry out the assessment of the various targets in accordance to their respective indicators, methodologies and frequencies.

Table 6: Summary of the Monitoring Activities for the Conservation Targets under FMU10
1UMDFDemarcated Forest Boundaries:
  • No Encroachments
  • No Illegal Timber Extractions
  • No Fire Occurrence
  • No wildlife Poaching
  • No enlargement of encroached areas by communities
Macro view
Remote Sensing Report; FMU10Tri AnnuallyK(FRM)
Demarcated Forest Boundaries:
  • No Encroachments
  • No Illegal Timber Extractions
  • No Fire Occurrence
  • No wildlife Poaching
  • No enlargement of encroached areas by communities
Micro view
Borang FMU10-1 (Borang Pemantauan / Rondaan)Monthly SurveillanceField Staff
Burn Area Planted & RestoredLaporan RestorasiQuarterly for Planted Acreage & Area MaintainedField Staff
Growth & Yield PlotsGrowth Report on the PSPsBi-AnnuallyFRC Research Team
5UMDFWildlife Surveys, HCV 1.3 and HCV 5 areas monitored
Borang FMU10-3 & Borang FMU10-4QuarterlyFiled staff
6Summit ScrubNo Poaching of Flora and Fauna
Borang FMU10-2All ascents & descents by tourist: Monthly (Summary)Field staff
7HornbillsPopulation density/ Species Distributions of Hornbills
Survey ReportsAfter each surveySabah Parks Team

These monitoring reports and Borang (Table 7) would help to advise the MPCT to make the necessary actions and amendments to meet the goals of the Conservation Targets and in managing the HCVF categories and areas.

Table 7: The Various Monitoring Forms (Borang) and Reports for FMU10
ItemsBorang / ReportsFrequency of ReportingInformation
1Remote Sensing Report : FMU10Tri-AnuallyOverall remote sensing health of FMU10
2Borang FMU10-1MonthlyMonthly surveillance status of FMU10 area
3Borang FMU10-2
Quarterly status of baggage check
4Borang FMU10-3
QuarterlyQuarterly status of wildlife surveys
5Borang FMU10-4
Quarterly status of HCV 1.3 area
6Growth & yield report on the PSPsBi-AnnuallyBi-annual status of planted areas
7Laporan restorasiQuarterly
Quarterly status of planted areas
8Hornbill reportsRandomlyStatus of Hornbills in FMU10
9Minutes of MeetingSix MonthlyStatus of HCV 5 area

Updates & Additional Information

Any important or pertinent updates or changes such as manpower and other planning capacities or capabilities or even changes in Forest policies or other relevant policies, which are needed for mass dissemination to the public, if so required, will be taken on board in the Annual Work Plan (AWP) or in this Public Summary on the FMU10 Website. Those updates will either be regularly done or otherwise will be taken as additional notes to this Document. The relevant Chapters in the FMU10: CAMP Ver. 2 document will be quoted with regards to those required updates. If those updates are found to be totally new and not detailed in the FMU10: CAMP Ver. 2 document, new chapters will be added accordingly and they should be taken as new addendum to this Document. The MPCT for FMU10 will produce an Addendum document for approval by the Chief Conservator of Forest Sabah accordingly, if that write up has not coincided with the mid – term review period.

To ensure continuity and to avoid confusions, the tasks of monitoring and developing the subsequent changes or updating of the relevant documents and the public summaries and others in the website are assigned to Jafin Abu Bakar and Haji Afifuddin Jadin. In the event of any transfers of these two (2) officers, able replacements must be assigned to continue these tasks.


1) Mohd Nooh M. J. 2015. Report on the Identification and Selections of the High Value Conservation Forest Areas in FMU10 (Trusmadi Forest Reserve (Class 1) and Sg.Kiluyu Forest Reserve (Class 1). Submitted to the MPCT for FMU10. 13 pp

2) Rahim Sulaiman. 2009. Conservation Area Management Plan for Forest Management Unit 10 (Tambunan).Sabah Forestry Department. Volume 1. 108 pp.

3) Rahim Sulaiman. 2013. Revised Conservation Area Management Plan for Forest Management Unit 10 (Tambunan).Sabah Forestry Department. Volume 1. 108 pp.
